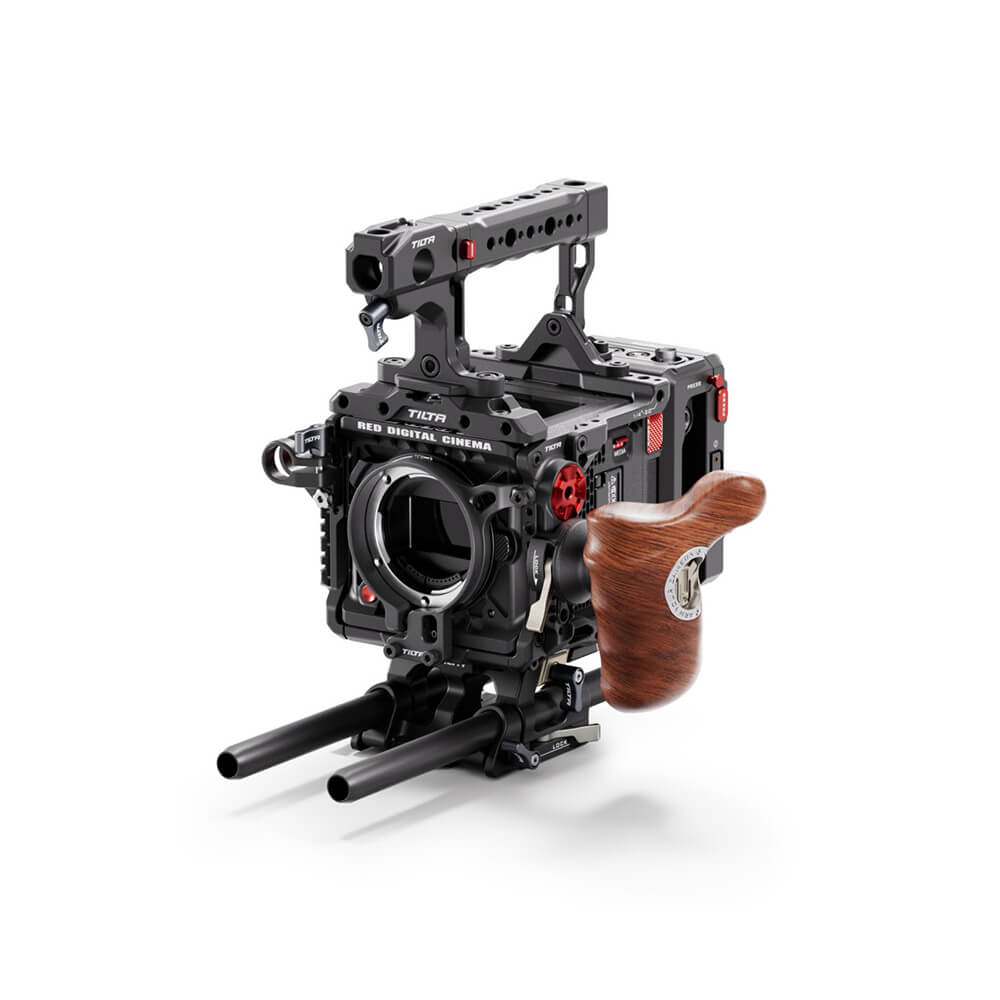

TILTA Camera Cage for RED KOMODO-X Adv Kit-Blk V-Mount

• Mount accessories via Cold Shoe, NATO, Arri Rosette, 1/4"-20 and 3/8"-16 Threads with Locating Points
• Foldable Top Handle Provides Secure Point of Contact for Handling and Swivels for Easier Access to the Top Screen
• LWS Baseplate Supports 15mm Rods and Mounts to Tilta Standard Dovetails
• I/O Module Features Additional Ports that Offers Flexibility for Run Stop, Timecode, and Powering Accessories
• Full Size V-Mounts via Height Adjustable Battery Plate Accommodates Larger Batteries

Introducing the Ultimate Camera Cage System for the RED Komodo-X. Enhance your filmmaking experience with our cutting-edge camera cage designed exclusively for the next generation of Komodo.

Designed with versatility in mind, this cage boasts an array of strategic mounting points including NATO Rails, a Cold Shoe Receiver, Arri Rosettes, and 1/4″-20 as well as 3/8″-16 threads with locating points.

Included with the Full Cage, our new Lens Adapter Support employs a sophisticated clamp-based design, providing multiple points of contact for improved stability.

This approach not only increases the security of your lens adapters, such as our Canon RF Mount to PL Mount Adapter, but also bolsters your confidence when using larger lenses.

Experience a new level of convenience with our one of a kind Foldable Top Handle which allows users to swivel the bulk of the handle out of the way, providing unobstructed access to your camera’s top screen while still being compatible with the DSMC3 RED TOUCH 7.0″ monitor.

This handle provides additional mounting points for accessories such as another Cold Shoe Receiver, a 15mm rod holder, 1/4″-20 and 3/8″-16 threads with locating points.

This kit includes a Left Side Wooden Handle that is carved from black walnut wood and feature an ergonomic design which is also rotatable, allowing users to find the perfect operating position and to re-position quickly when needed.

Rounding out the kit is our 15mm LWS Baseplate which supports dual 15mm rods and rod based accessories such as follow focus systems or matte boxes.

This LWS baseplate features a bottom plate is compatible with our Tilta Standard Dovetails and can be adapted via our optional 19mm Baseplate to support 19mm rods and mount to Arri Standard Dovetails.

The included Battery Plate adapts the Komodo X’s Micro V-Mount Plate to support Full Sized V-Mount Batteries and features a height adjustment to accommodate various sized batteries.

The Advanced I/O Module features an integrated EXT Cable that offers increased functionality for Run Stop, Timecode, and power via additional ports.

This Module can be mounted and powered via the Battery Plate or it can be mounted externally and powered via a 2 Pin power input. The Battery Plate and I/O Module include the following ports:

(1) 14.8V 2-Pin LEMO Input/Output
(1) 3 Pin Fischer R/S Port
(1) Timecode Port
(1) Red CTRL Port
(1) Genlock Port

(2) 14.8V 2-Pin LEMO Port
(1) 14.8V P-Tap Port
(1) USB-C Port

Elevate your creative potential, safeguard your equipment, and unleash the full extent of your vision with a comprehensive system that seamlessly integrates protection, versatility, and innovation.

Packing List
1：Full Camera Cage for RED KOMODO-X – Black（TA-T53-FCC-B）*1
2：Foldable Top Handle for RED KOMODO-X – Black（TA-T53-FTH-B）*1
3：Tiltaing Advanced Left Side Wooden Handle – Black(TA-ALWH-B)*1
4：Tiltaing Advanced Left Side Handle Attachment Type VIII – Black（TA-AHA8-L-B）*1
5：15mm Side Single Rod Holder-Black（TA-SRA-15-B）*1
6：15mm LWS Baseplate for RED Komodo – Black（TA-T08-BSP-B）*1
7：Aluminum Rod 15*200mm – Black（R15-200-B）*2Pcs
8：Battery Plate for RED V-RAPTOR – V Mount（ESR-T08-BP-V）*1
9：Advanced I/O Module for RED V-RAPTOR（ESR-T08-IOM）*1
