TILTA Khronos iPhone 15 Pro / Pro Max Ultimate Kit

• Custom Designed for iPhone 15 Pro and Pro Max Smartphones
• USB-B Hub Provides Additional USB Ports for SSDs and and HDMI Port for External Monitors with an Integrated ARCA Plate
• Focus Handle Features Integrated Battery to Power Accessories and Expands Control for Focus, Zoom and Run Stop
• Cooling Module Accommodates Longer Recording Time, Limits Overheating, and Powers iPhone via MagSafe
• ND Filters Provide Greater Exposure Control Over Images without Impacting Shutter Speed

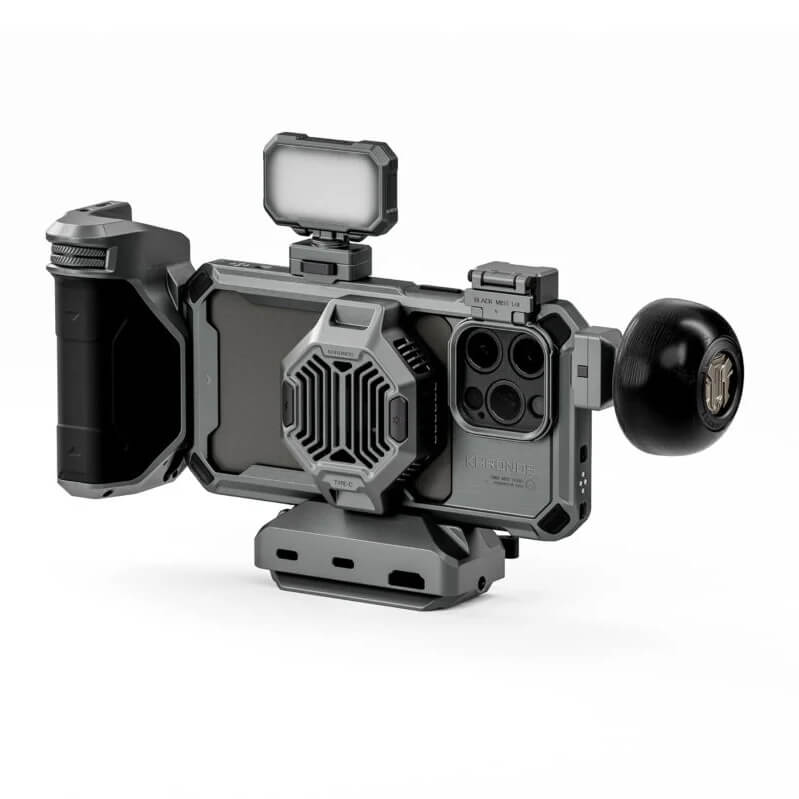

Introducing the Khronos Ultimate Kit for iPhone 15 Pro / Pro Max, the next generation of mobile filmmaking.

Designed meticulously for both models of iPhone 15, this camera cage inspired smartphone case offers an unparalleled blend of functionality and elegance. Built to shield your phone from daily wear and tear, the Khronos case offers reliable protection without compromising on style or functionality. Installation requires four screws which ensure the case and any connected accessories remain securely attached.

Equipped with multiple mounting points, the innovative locking clamp mechanism ensures a secure connections for additional accessories. The Khronos case features integrated electronic contact points throughout, allowing you to pass power through the cage to power your accessories.

Included in the Ultimate Kit is the Khronos Focus PD Handle which provides additional power to your system and offers greater control over the iPhone’s Focus and Zoom functionality. This handle utilizes the same innovative locking clamp mechanism as other Khronos accessories and features an internal battery that can be charged via USB-C.

The Handle connects to an iPhone 15 via an integrated USB-C cable and uses bluetooth to control focus or zoom via the dial on the front of the handle. This also provides more stability when operating the system and the record button ensures users do not need let go of the handle to start recording.

The Circular Wooden Handle serves as an alternative option for operating and features an integrated NATO Rail for mounting more traditional camera accessories. The Wooden Handle itself has a small swivel which allows the handle to be rotated in order to position it in the most comfortable configuration for a specific shot or setup.

Also included with the kit is the Cooling System for Khronos which features a 22W variable frequency heat dissipator capable. Simply connect to an external power source via USB-C or use the power from the included handle to simultaneously charge your iPhone and maintain its temperature while utilizing the MagSafe wireless magnetic connection.

Also included with this kit is a USB-C Hub which connects to the iPhone via USB-C and expands options for connecting external drives as well as external monitors via an HDMI port. The bottom of this USB-C Hub features an integrated ARCA Quick Release Plate, which makes it ideal for mounting to tripods or gimbals.

This kit also includes a Daylight Mini LED Light which can be mounted in multiple positions on the case. The light features a CRI ≥95RA and has 3 set brightness levels as well as an adjustable mount.

The ARCA Quick Release Plate ensures the system is quick to mount onto compatible ARCA tripods as well DJI gimbals when not using the USB-C Hub. The SSD Drive Holder provides a convenient option for mounting Solid State Drives in order to record externally.

The Filter Tray easily mounts to the Khronos Case via a secure magnetic connection and features a swivel mount that allows the tray to drop into place over all three lenses of the iPhone 15 Pro/Pro Max.

The included ND filters provide greater control over exposure by allowing users to reduce light visible to the sensor, which also helps keep the shutter speed consistent when shooting in brighter lighting environments like daylight. The Mist filters can also be used to help create a more diffused and soft image.

Derived from the Greek word for “time,” the name “Khronos” embodies a profound concept. More than just a phone case, it serves as a vessel to preserve cherished memories shared among families, friends, and loved ones.

Packing List

TK-IP15-PMD-SG
1：Khronos iPhone 15 Pro Max Case – Space Gray（TK-IP15-PMFC-SG）*1
2：Khronos Cooling System for iPhone – Space Gray（TK-IP-CS-SG）*1
3：Khronos Focus PD Handle for iPhone – Space Gray（TK-IP-PH-SG）*1
4：Khronos Mini LED Panel (Daylight) – Space Gray（TK-MLP-DL-SG）*1
5：Khronos ARCA Quick Release Adapter (38mm) – Space Gray（TK-ARCA-38-SG）*1
6：Khronos Quick Release USB-C Hub – Space Gray（TK-QRUH-SG）*1
7：Khronos Circular Wooden Handle – Space Gray（TK-CWH-SG）*1
8：Khronos Universal SSD Holder – Space Gray（TK-USH-SG）*1
9：Khronos Quick Release Filter Tray for iPhone – Space Gray（TK-IP-FT-SG）*1
10：Khronos Magnetic FSND 0.6 Filter for iPhone（TK-IP-ND6）*1
11：Khronos Magnetic FSND 1.2 Filter for iPhone（TK-IP-ND12）*1
12：Khronos Magnetic Black Mist 1/4 Filter for iPhone（TK-IP-BM14）*1
13：Khronos Magnetic White Mist 1/4 Filter for iPhone（TK-IP-WM14）*1

TK-IP15-PD-SG:
1：Khronos iPhone 15 Pro Case – Space Gray（TK-IP15-PFC-SG）*1
2：Khronos Cooling System for iPhone – Space Gray（TK-IP-CS-SG）*1
3：Khronos Focus PD Handle for iPhone – Space Gray（TK-IP-PH-SG）*1
4：Khronos Mini LED Panel (Daylight) – Space Gray（TK-MLP-DL-SG）*1
5：Khronos ARCA Quick Release Adapter (38mm) – Space Gray（TK-ARCA-38-SG）*1
6：Khronos Quick Release USB-C Hub – Space Gray（TK-QRUH-SG）*1
7：Khronos Circular Wooden Handle – Space Gray（TK-CWH-SG）*1
8：Khronos Universal SSD Holder – Space Gray（TK-USH-SG）*1
9：Khronos Quick Release Filter Tray for iPhone – Space Gray（TK-IP-FT-SG）*1
10：Khronos Magnetic FSND 0.6 Filter for iPhone（TK-IP-ND6）*1
11：Khronos Magnetic FSND 1.2 Filter for iPhone（TK-IP-ND12）*1
12：Khronos Magnetic Black Mist 1/4 Filter for iPhone（TK-IP-BM14）*1
13：Khronos Magnetic White Mist 1/4 Filter for iPhone（TK-IP-WM14）*1
