TILTA Hydra Alien Car Mounting System Pro Kit

• Unlimited Creativity Durable & Lightweight with Flexible Installation Angles
• Fast and Steady Optimized Shock Absorption for Smooth Camera Movement
• Remote Kit Supports Wireless Control of the DJI RS2 and RS3 Pro
• Flexible Power Options Longer Shooting Duration via Gold/V-Mount Battery Plates
• Heavy Duty Case for Added Security While Transporting

The Pro Kit includes the Hydra Alien Car Mounting System, plus the Remote Control Kit  and the Hydra Alien Monitor Bracket.

The Hydra Alien Pro Kit offers a complete package for flexible car mounting while including additional accessories to offer more accurate control and improved ease of use.

The Pro Kit features the Remote Control Kit which offers full wired or wireless control of the DJI RS2 or RS3 Pro and includes the Hydra Alien Monitor Bracket which makes it easier to monitor your footage while controlling the Ronin.

The Hydra Alien Car Mounting System was designed from the ground up to work in conjunction with smaller gimbals to allow for a lightweight solution to car-mounted cinematography.

The system utilizes a highly customizable combination of dovetail-like plates and suction cups that can support a payload of 50kg each.

Highly elastic shock-absorbing silicon provides longer durability and less abrasion, while the updated suction cup plungers create a stronger seal for improved security in colder weather.

When interconnected, the system allows users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting to a vehicle.

The system also uses a shock absorbing arm to better stabilize the camera for certain shots as well as a spring-loaded cradle head if the intended shot requires that the gimbal be flipped upside down.

The newly included Hydraulic Dampening Pole further stabilizes the arm to provide smoother results when driving conditions are less than optimal.

The Hydra Alien supports full wireless control of the RS2 and RS3 Pro via the included Remote Control Kit, which allows you to control your gimbal’s settings as well as the record and photo functions of your camera via either a wired or wireless connection.

It also includes a thumbstick that allows you to control the pan and tilt of your gimbal for maximum precision while operating.

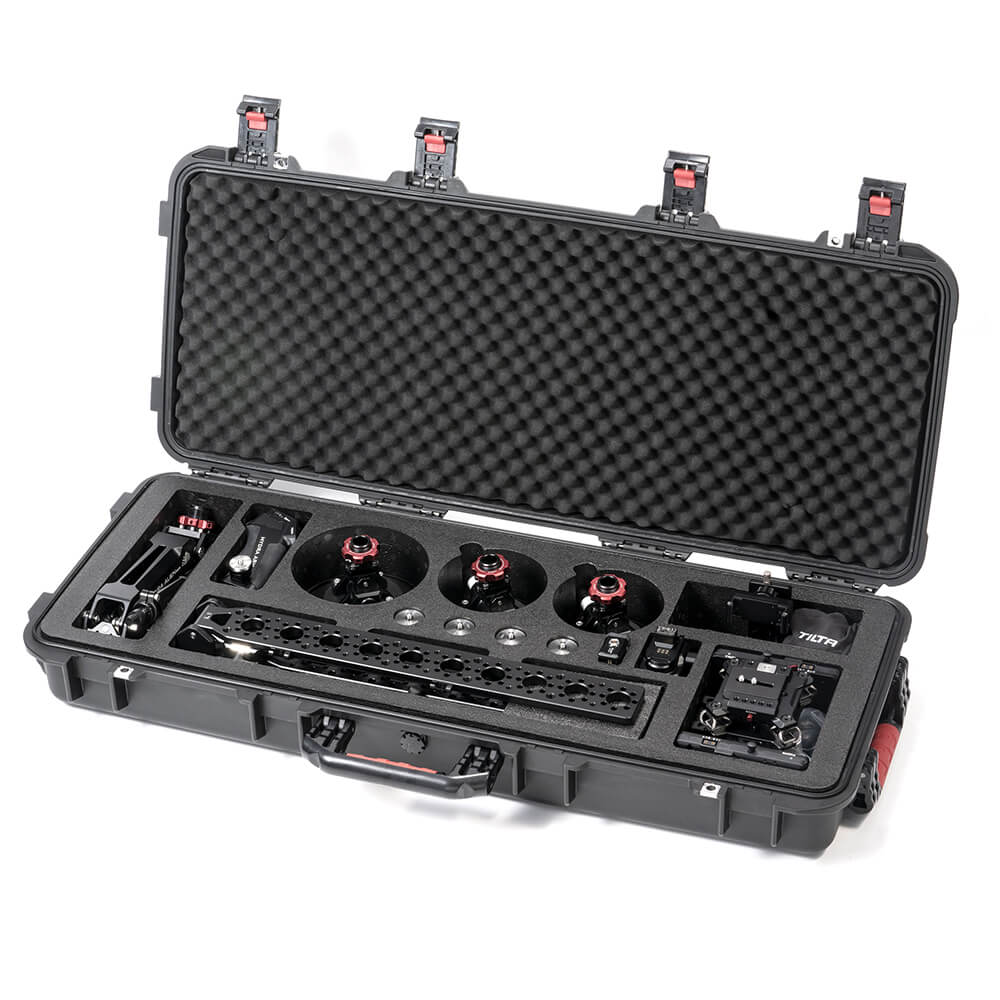

The new Hard Shell Safety Case is designed to store and protect the Hydra Alien.

This allows you to safely transport the system between shooting locations and neatly store the system when it is not in use.

The waterproof design protects the case and equipment from hazards like rain and snow.

This case functions as a replacement for the one included with the Hydra Alien, but can also be used to store other equipment if needed.

High, low. To the side of the car, mounted on top of it — almost any car mounted shot can be configured using the Hydra Alien Car Mounting System. Let your imagination run wild!

NOTE: This system supports any gimbal that can mount via 1/4″-20 screws and power via P-Tap. The Remote Control Handle only supports the RS2 and RS3 Pro.

CAUTION: We do not recommend using the suction cups on wrapped vehicles due to suction issues related to direct sunlight and heat.

RS3/RS3 Pro: The M Key is NOT able to mimic the function of the gimbal. The M Key on this unit can ONLY change the Mode setting.

Packing List
1：Hydra Alien Dovetail Plate L1（HDA-T02-L1）*1
2：Hydra Alien Dovetail Plate L2（HDA-T02-L2）*1
3：Hydra Alien Dovetail Plate L3（HDA-T02-L3）*1
4：Hydra Alien Dovetail Plate L4（HDA-T02-L4）*1
5：Hydra Alien Dovetail Connector Plate（HDA-T02-DCP）*1
6：Hydra Alien Large Suction Cup（HDA-T02-LSC）*1
7: Hydra Alien Small Suction Cup（HDA-T02-SSC）*2
8：Hydra Alien Shock Absorbing Arm with Hydraulic Damping Pole（HDA-T02-SAA）*1
9：Power Supply Base Plate for RS 2 with power cable（TGA-PBP）*1
10：220g Counterweight（TGA-CW-220）*8pcs
11：Hydra Alien Cable Clamp Suction Cup（HDA-T02-CSC）*1set（10pcs/set）
12：Hydra Alien Tool Kit（HDA-T02-TK）*1
13：Safety Belt（219-000000-089）*1
14：Hydra Dual Battery Plate Cradle Head – V Mount（HDA-BCH-V）*1
1：Hydra Alien V-Mount Battery Plate(HDA-T02-BP-V)*2
2：Hydra Alien 90 Degree Adapter for Shock Absorbing Head（HDA-T02-ASA）*1
3: Hydra Alien Shock Absorbing Head（HDA-T02-SAH）*1
4：Hydra Alien Dual Battery Plate Support Bracket（HDA-T02-DPS）*1 are included
15：Hydra Alien Car Mounting Hard Shell Waterproof Safety Case（HDA-T02-WSC）*1
16：Hydra Alien Monitor Bracket（HDA-T02-MB）*1
17：Remote Control Handle for RS 2/Ronin S（TGA-RCH）*1
18：Remote Control Receiver Module for RS 2（TGA-RCR）*1
19：6-Pin Lemo to 6-Pin Lemo Cable（500 cm) (TCB-6LE-6LE-500)*1
