Accsoon CineView Nano Wireless Transmitter System
- Long-distance transmission of 150m
- Support HDMI input
- 1 TX to 4 App
- No fan design
- Power by NP-F battery & USB-C
- Wireless remote monitoring App Accsoon SEE, RTMP Live Streaming
- Automatic channel selection
- FHD video and High-Quality audio transmission
- Firmware update with ease

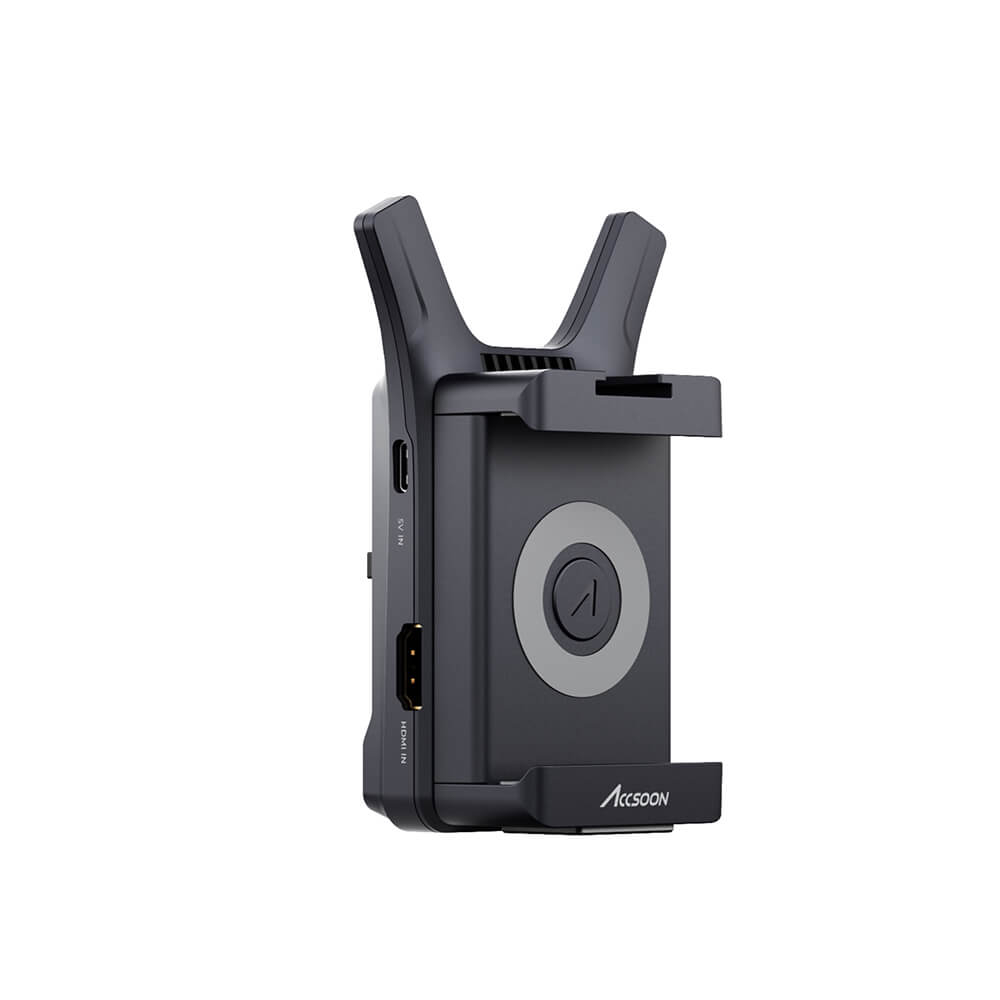

CineView Nano is a smaller, lighter version of the CineView wireless system. The CineView Nano accepts up to a full HD 1080p60 HDMI signal via a HDMI port, and it wirelessly transmits the signal to up to four separate iOS/Android mobile devices at the same time. The signal is sent over 5GHz up to 500ft line of sight with a low latency of approximately 60ms.
Ultra-Compact, Pocket-Sized Design
About 76mm × 113mm in size, CineView Nano weighs only 72.3g and is less than half the weight of the CineView HE/SE transmitter. It also has an aluminum housing for durability. Two integrated antennas built in to maintain the small size.
HDMI Monitoring Made Easier
CineView Nano features one HDMI-in port and uses 5G WiFi signal to send video wirelessly to up to 4 tablets or phones with both Android or iOS system.
Low Latency, Long Range
With an average latency of around 60ms, Nano has nearly undetectable lag that transmits to a maximum distance of 150m.
Mounting & Powering
CineView Nano offers a 1/4″-20 mounting point on the bottom and can easily be mounted on your camera. It also features a well-designed phone holder to secure your phone while monitoring.
On Your Gimbal Too
Alternatively, the phone clamp can be detached and replaced with a gimbal attachment plate compatible with DJI RS2/RS3 gimbals. This conveniently situates the CineView Nano underneath the camera mounting plate for optimal balance and ease of access.
Included in the box
1 x Transmitter
1 x Phone Clamp
1 x Cold Shoe Mount Adapter
1 x RS2/3 Pro Gimbal Adapter
1 x User Manual
Specifications
Projects: CineView Nano
Video Input: HDMI
Video Output: 1080p 23.98/24/25/29.97/30/50/59.94/60fps
Audio: 44.1KHz/48KHz 16bit/24bit PCM via HDMI
Latency: ＜0.06s (Camera latency not included)
Transmission Power: 17~20dBm
Transmission Range: 500ft (No obstacles, no interference)
Power Consumption: 2.5 Watt (Without charging other devices)
Operating Environment Temperature: -10~40°C
Dimensions: 76mm × 113mm × 20mm
Weight: 72.3g
