ACCSOON CineEye 2S PRO 2,4 & 5GHz WiFi Transm SDI/HDMI - 1 TX & 1RX

Low Latency, True Wireless Productivity on Set
2.4GHz、5GHz Dual-Band Transmission
350m of Transmission Range
One Transmitter for Multiple Receivers
High Quality Synced Audio and Video Transmission
Professional Monitoring App

CineEye 2S Pro is Accsoon’s new professional wireless transmission system with SDI and HDMI input. With innovative 2.4GHz+5.8GHz Dual-Band Transmission technology, it can intelligently identify interference during transmission, then combine the data from these two streams to form the complete audio and video signal, greatly improving its stability and anti-interference capability. CineEye 2S Pro is far more stable than traditional Wi-Fi video transmitters that only stream in 5GHz, and once on set, it will provide you with a stable and glitch-free stream.

2.4GHz、5GHz Dual-Band Transmission, More resistant to interference and way more stable
CineEye 2S Pro is equipped with Accsoon’s patent Dual-Band Transmission Technology, allowing It to stream the video signal via 2.4GHz and 5.8GHz Wi-Fi at the same time. Then the receiver can intelligently identify interference and combine the two streams to form the complete audio and video stream, greatly improving its stability and anti-interference capability.

With Dual-Band Transmission, CineEye 2S Pro is far more stable than traditional Wi-Fi video transmitters that only stream in 5GHz. Once on set, CineEye 2S Pro will provide you with a stable and glitch-free stream, handling even the toughest environment with ease.

Low Latency, True Wireless Productivity on Set
Latency is a big thing for wireless video transmitters. From the transmitter to the receiver, CineEye 2S Pro has less than 0.06s of latency, which is the best performance in its range. No matter if it’s monitoring or follow focus, CineEye 2S Pro can handle it.

350m of Transmission Range
Thanks to Dual-Band Transmission, CineEye 2S Pro’s transmission range can now reach 350m line-of-sight. With this long range, you can check what is happening real-time on set even if you are quite far away from it.

One Transmitter for Multiple Receivers
CineEye 2S Pro can send to up to 4 devices. Receivers, iPhones, iPads, android devices, mix and match. Do it however you want.

High Quality Synced Audio and Video Transmission
CineEye 2 Pro supports multiple video input of up to 1080p 60fps. Also supports 44.1KHz/48KHz 16bit/24bit audio input, and it streams the audio with low compression codec, giving you near lossless audio monitoring experience.

Professional Monitoring App
The best Monitoring App in its class. Supports both Android and iOS. Comes with all the popular monitoring features like: Audio & Video Recording, False Color, Focus Assist, Histogram, Waveform, Loading 3D LUTs and CDLs, Custom Anamorphic Ratio, Custom Ratio Guides etc.

With Accsoon Go App, the latency on iPad is still less than 0.06s, equal to other professional monitors.
With more professional monitoring tools in our app, your iPad can turn into a pro-level on-set monitor, but with a 12.9-inch big screen and a lightweight enclosure that’s easy to carry around, giving you a refreshing taste of what smart monitoring should feel like.

Also, the App support livestream to Youtube directly, no complicated accessories needed, once the CineEye 2S Pro on set then you can use your iOS devices stream the video to the Youtube easily.

Automatic Channel Selection
CineEye 2S Pro supports 20 channels. During its boot time, CineEye 2S Pro will automatically select the cleanest channel to stream, paired with Dual-Band Transmission, it will further improve its anti-interference capability, ensuring ultra-stable wireless connection.

8. Rotate the Knob, and That is It!
With CineEye 2S Pro, we abandoned the over-complicated transmitter-to-receiver pairing process, and instead innovatively introduced the “Pairing Knob”.
All you need to do, is to rotate the knob on both the transmitter and receiver to the same number, then that is it. Your transmitter and receiver(s) are now successfully paired!

9. Low Power consumption, No-Fan Design
CineEye 2S Pro has very low power draw, a single NP-F970 battery can last you 8 hours.
CineEye 2S Pro also has no fans inside, ensuring zero fan noise, adding no trouble to your sound recording workflow.

10. 1.3-inch OLED Screen
CineEye 2S Pro is equipped with a high-bright OLED screen. Paired with a clean and simple UI, you can easily learn about the real-time connection status and battery voltage. And with simple control logic, you can quickly adjust settings on the transmitter and receivers such as Video Quality Modes and Channel Selection.

11. Easy Firmware Updates
CineEye 2S Pro support firmware updates. No sophisticated process needed, you can directly update your transmitter and receiver on the app.

12. Live Long and Hot Swap
You can power CineEye 2S Pro with NP-F550/750/970 batteries and DC input (7.4V-16.8V), and a single NP-F970 can last you 8 hours. These two power inputs will be automatically hot-swapped, never putting a stop to your work on set.

In-Package Items List
1x Transmitter
2x   Receiver
9x Antennas
1x   User-Manual
2x   Cold-Shoe Adapters

Specifications
Transmitter
Video Input   SDI+HDMI
Video Output   None
Video Format
SDI:
1080p 23.98/24/25/29.97/30/50/59.94/60fps
HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60fps
720p 50/59.94/60fps   720p 50/60fps
480p 59.94/60fps
Receiver
Video Input None
Video Output SDI+HDMI
Video Format
SDI:
1080p 25/30/50/60fps
HDMI:
1080p 25/30/50/60fps
480p 60fps
Audio   44.1KHz/48KHz 16bit/24bit PCM
Latency   <60ms（1 transmitter to 1 receiver）
OLED   1.3-inch OLED
Firmware Update   Yes, via App
Antenna   Changeable external antenna
Channel   Auto/Manual, 20 channels (depend on local RF laws)
Transmission Power   17~20dBm
Range   350 meters（open sight, 1 transmitter to 1 receiver）
Power Supply   NP-F550, NP-F750, NP-F970   DC（7.4～16.8V) Input；
Power Consumption   4.5 Watt (Transmitter)   5.5 Watt (Receiver)
Mounting Hole   1/4‘’ with Arri Locating Hole
Operating Temp   0～45 deg-C
Dimensions   125mm×77mm×31mm
Weight   Transmitter 260gram/ Receiver 260gram (battery and antenna not included)

Ean code	664918771836
Manufacturer item number	XC-HD-P5
Package Volume (l)
Package Weight (g)	100
Net weight (g)	80
Country of origin	China
Inner box quantity	1

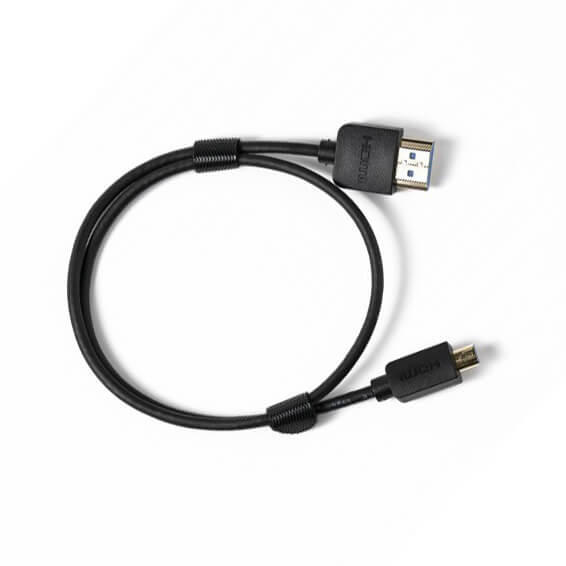

HDMI Cable A-D 50cm
