BLACKMAGIC

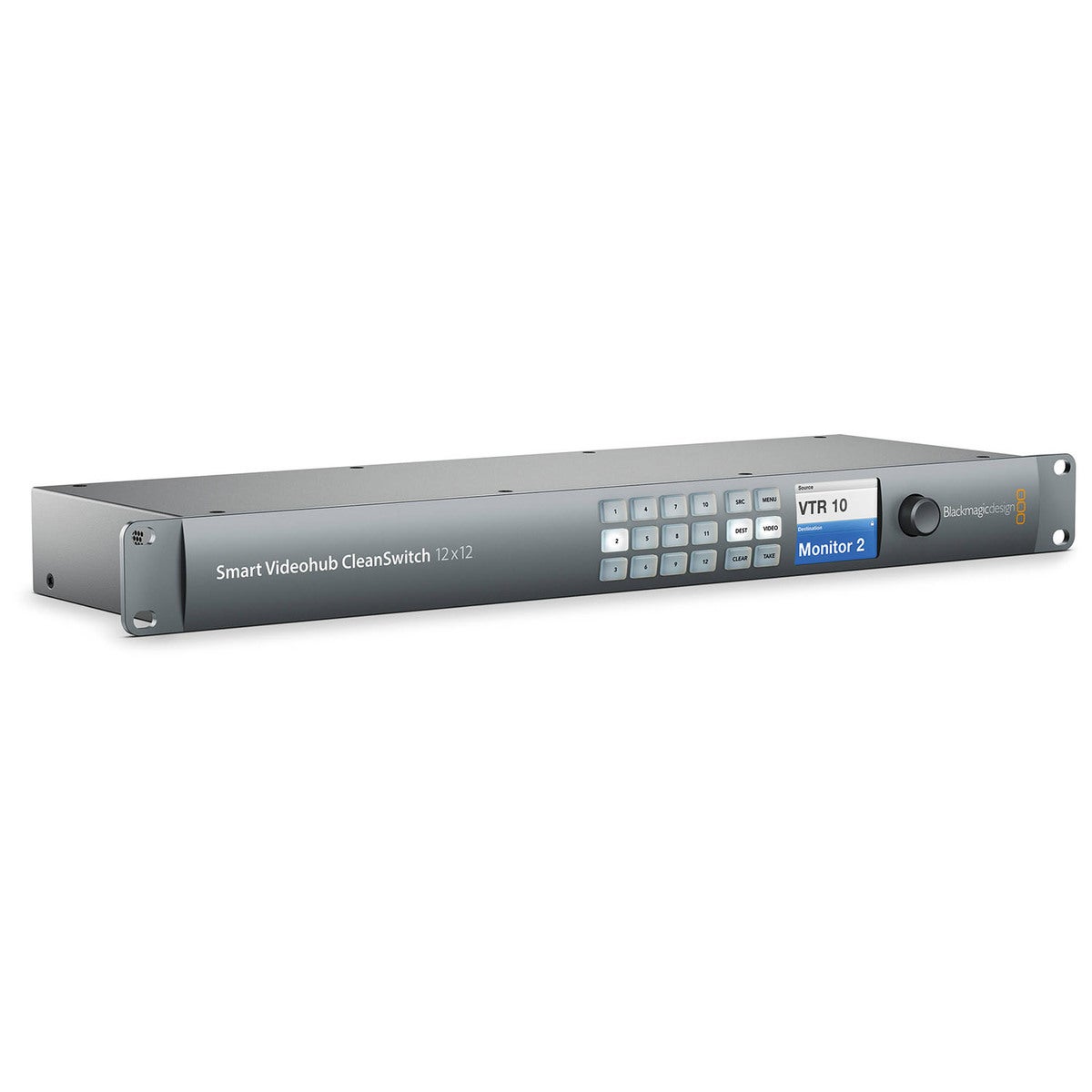

BLACKMAGIC Smart Videohub CleanSwitch 12x12

Item number 60014351

Smart Videohub CleanSwitch 12 x 12 6G-SDI
• Routing Switcher with Frame Syncing
• 12 x 6G-SDI Inputs / 12 x 6G-SDI Outputs
• Supports SD, HD, Ultra HD 4K, DCI 4K
• 4:2:2 and 4:4:4 Sampling

The Smart Videohub CleanSwitch 12 x 12 6G-SDI from Blackmagic Design is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. The CleanSwitch model allows for re-timing of SDI feeds, so all switches are timed to happen between frames. It supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a 1RU frame, the Smart Videohub is ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network.

Note: IEC power cable is not included.

Technical data:
Connections
SDI Video Input 12 x 10-bit SD/HD/6G-SDI
SDI Video Output 12 x 10-bit SD/HD/6G-SDI
Reference Input Blackburst and TriSync for SD, HD and UHD 4K
Multi-Rate Support Auto detection of SD, HD, or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI
Updates USB 2.0 high speed (480 Mb/s) interface or via Ethernet
Control 12 buttons for local control of Videohub
6 buttons and scroll wheel for control of LCD display
1 x RJ45 Ethernet
1 x RS-422 input for controlling router crosspoint switching
Configuration Via front panel LCD or use either RJ45 Ethernet
USB 2.0 for setting IP address only
Reclocking On all SDI outputs, auto switching between SD, HD, or 6G-SDI video

Standards
Format Support SD Format Support
625/25 PAL
525/29.97 NTSC
525/29.98 NTSC

HD Format Support
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K Format Support
2048x1080p 23.98/24/25
2048x1080PsF 23.98/24/25

4K Format Support
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates SD-SDI: 270 Mb/s
HD-SDI: 1.5 Gb/s
3G-SDI: 3 Gb/s
6G-SDI: 6 Gb/s
SDI Video Sampling 4:2:2 and 4:4:4
SDI Color Precision 4:2:2 and 4:4:4 10-bit
SDI Audio Sampling 48 kHz and 24-bit
SDI Color Space YUV or RGB
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M

Software
Software Control Router control included free for Windows and Mac OS X
Internal Software Upgrade Via included updater application

General
Display LCD for video and menu settings
Power Supply IEC power cable required
90 to 240 VAC input
Power Fail Protection Router connections preserved and restored instantly at power on
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 113°F (-20 to 45°C)
Relative Humidity 0 to 90% non-condensing
Rack Space 1 RU
Dimensions (W x H x D) 19.00 x 1.73 x 6.30" (48.26 x 4.39 x 16.00 cm)
Weight 4.14 lb (1.88 kg)

See more

Rec. price € 1 662,30

Ean code
9338716003437

Manufacturer item number
VHUBSMTCS6G1212

Package Weight (g)
2347

Net weight (g)
1877.6

Country of origin
SG

Inner box quantity
1
