Swit offers a motorized pantograph with DMX control for professional studio solutions.

• Aluminum alloy for heavy load.
• Strong load capacity of 30kg.
• Expansion length from 0.8m to 5m.
• DMX motorized stretch control.
• Movement speed of 10cm/s.

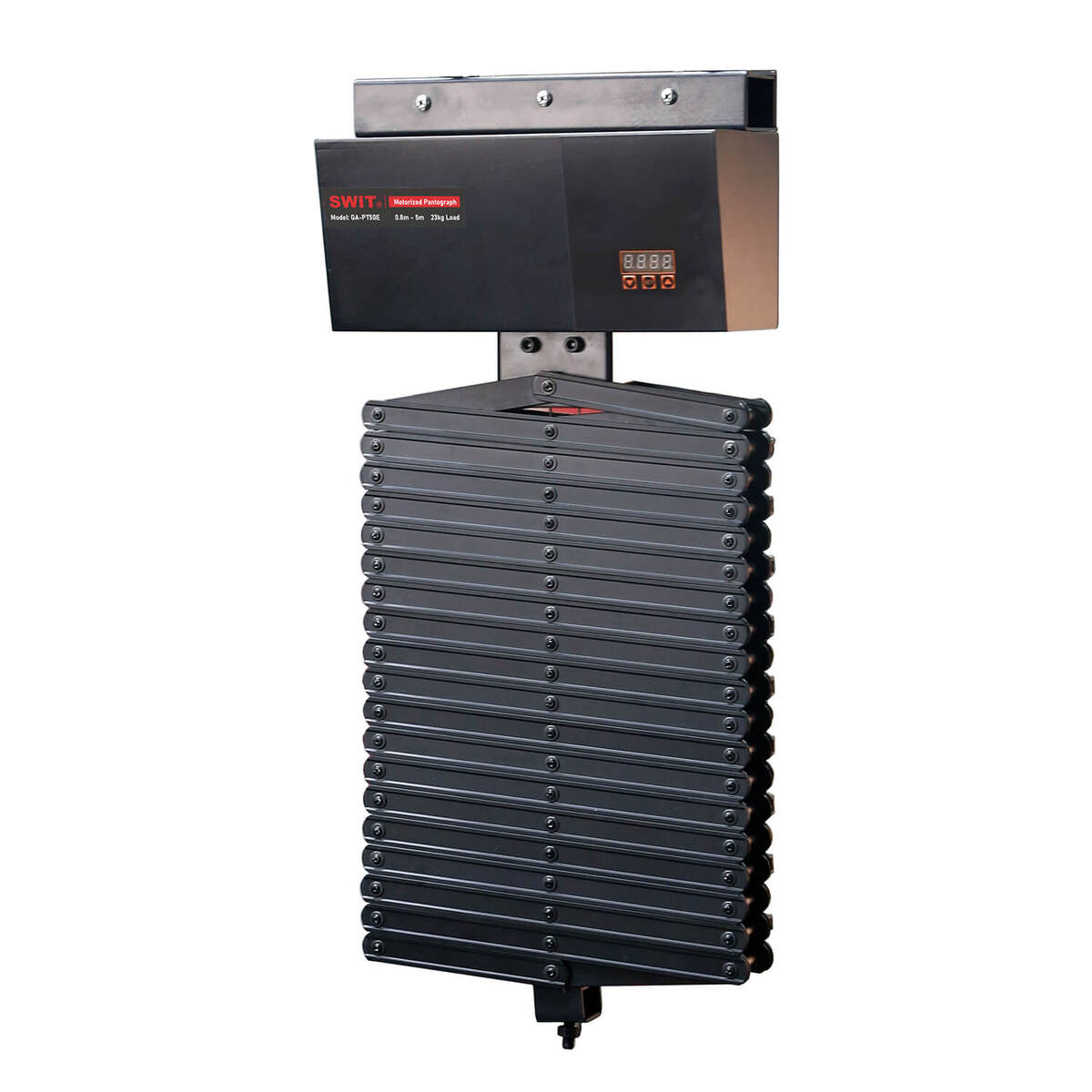

The Swit GA-PT50E DMX motorized pantograph is a robust and reliable solution to manage the positioning of studio lights. Made of aluminum alloy, it can withstand a maximum load of 30kg and offers an adjustable expansion length from 0.8m to 5m. With DMX motorized stretch control, you can easily adjust the height of the lights via a DMX console, providing a movement speed of 10cm per second.

On the front of the pantograph, you can set the DMX address to control the up and down movements. The rear is equipped with AC 100-240V, 50/60Hz inputs and loop outputs, PowerCON True1 connectors as well as DMX 5-pin XLR input and loop output for series connection. A cable organizer on the back keeps power and DMX cables organized as the light moves up and down.

The pantograph can be easily connected to ceiling hooks with screw bolts, and Swit offers the GA-DG75 hook that fits perfectly. On the lower part, there is a screw bolt and nut for easy mounting on the studio light bracket. To install the pantograph on Swit lights, remove the baby pin socket on the bracket before installation.
