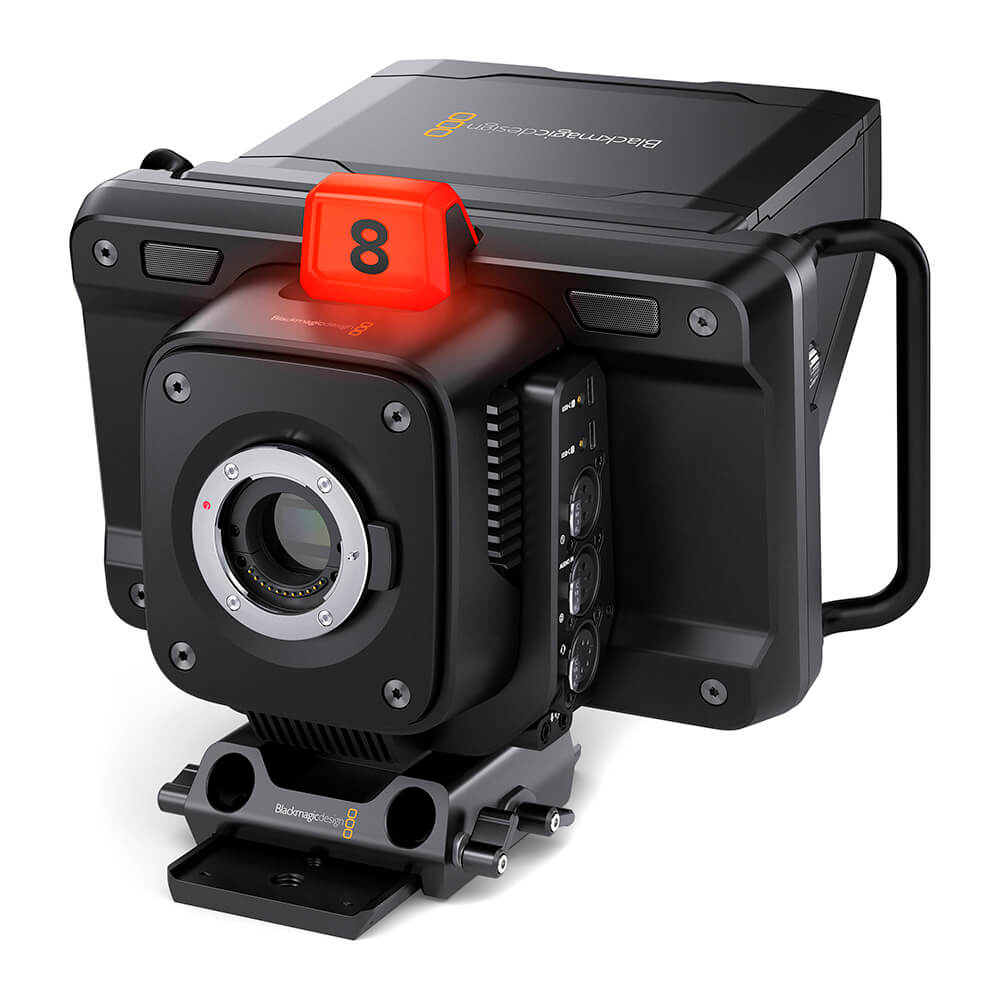

Studio camera with 4K sensor, Micro 4/3 lens mount, 7" HDR touch screen with high brightness and is perfect for TV production, news broadcasts, sports, conference presentations and even weddings!

• Micro Four Thirds Lens Mount
• Capture up to UHD 4K 3840 x 2160p60
• Live Streaming
• 12G-SDI, HDMI & 10G Ethernet Video I/O
• Affordable Single-Cable PoE Workflow
• 7" High-Brightness HDR Touchscreen LCD
• Record to External USB Type-C Disks
• Records Blackmagic Raw, Up to 25,600 ISO
• 12G-SDI, HDMI & 10G Ethernet Video I/O
• XLR & 3.5mm Audio Input, Built-In Mics

Designed for professional SDI switchers, you get the features of the Studio Camera Plus model, as well as 12G-SDI, XLR audio, bright HDR LCD, talkback, 10G Ethernet IP link and HD live streaming.

While Blackmagic Studio Camera is designed for live production, it’s not limited to use with a live switcher! That’s because it records Blackmagic RAW to USB disks, so it can be used in any situation where you use a tripod! The large 7" viewfinder makes it perfect for work such as chat shows, television production, broadcast news, sports, education, conference presentations and even weddings! The large bright display with side handles, touch screen and physical controls makes it easy to track shots while being comfortable to use for long periods of time. Because it’s so lightweight, it’s perfect when you're constantly changing locations and doing different kinds of work.

Large broadcasters use expensive studio cameras that are extremely large, so they’re not very portable. The distinctive Blackmagic Studio Camera has all the benefits of a large studio camera because it’s a combination of camera and viewfinder all in a single compact design. It features a lightweight carbon fiber reinforced polycarbonate body with innovative technology in a miniaturized design. The camera is designed for live production so it’s easy to track and frame shots with its large 7" viewfinder. The touchscreen has menus for camera settings, and there's knobs for brightness, contrast and focus peaking. Plus a tripod mount with mounting plate is included for fast setup!

Delivered with Blackmagic Design Studio Camera 4K G2, Sun Hood, Turret Dust Cap, Universal Power Supply, 15mm LWS Tripod Mount and Tally Decal Set.

Specifications
Effective Sensor Size: 23.10mm x 12.99mm (Super 35)
ISO Sensitivity:    100 to 25,600
Gain:    0 to 18 dB
Sensitivity:
f/11 at 2000 lux 89.9% Reflectance (UHD 4K60)
f/12 at 2000 lux 89.9% Reflectance (UHD 4K60)
Signal-to-Noise Ratio:    63 dB
Lens Mount:    Micro Four Thirds
Shutter Speed:    1/5000 to 1/24 Second
Built-In ND Filter:    None
Built-In Microphone Type:    Stereo
Broadcast System Compatibility:    NTSC, PAL
Interfaces:
CCU I/O:    None
Video I/O:
1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
1 x HDMI Output
Audio I/O:
2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
1 x XLR 5-Pin Intercom Input/Output
Other I/O:
1 x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output
2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output
Recording:
Raw Recording:
Blackmagic RAW 10-Bit
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Audio Recording:
ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio
Display:
Display Type:    Fixed Touchscreen LCD
Size:    7"
Resolution:    1920 x 1200
Power:
Power I/O:
1 x XLR 4-Pin (12VDC) Input
1 x Barrel (12VDC) Input
Power Consumption:    46 W
Accessory Mount:    2 x 1/4"-20 Female
Tripod Mount:    3/8"-16 Female
Dimensions:  27.36 x 16.97 x 16.74 cm (Without Protrusions)
Weight.    1.68 kg
