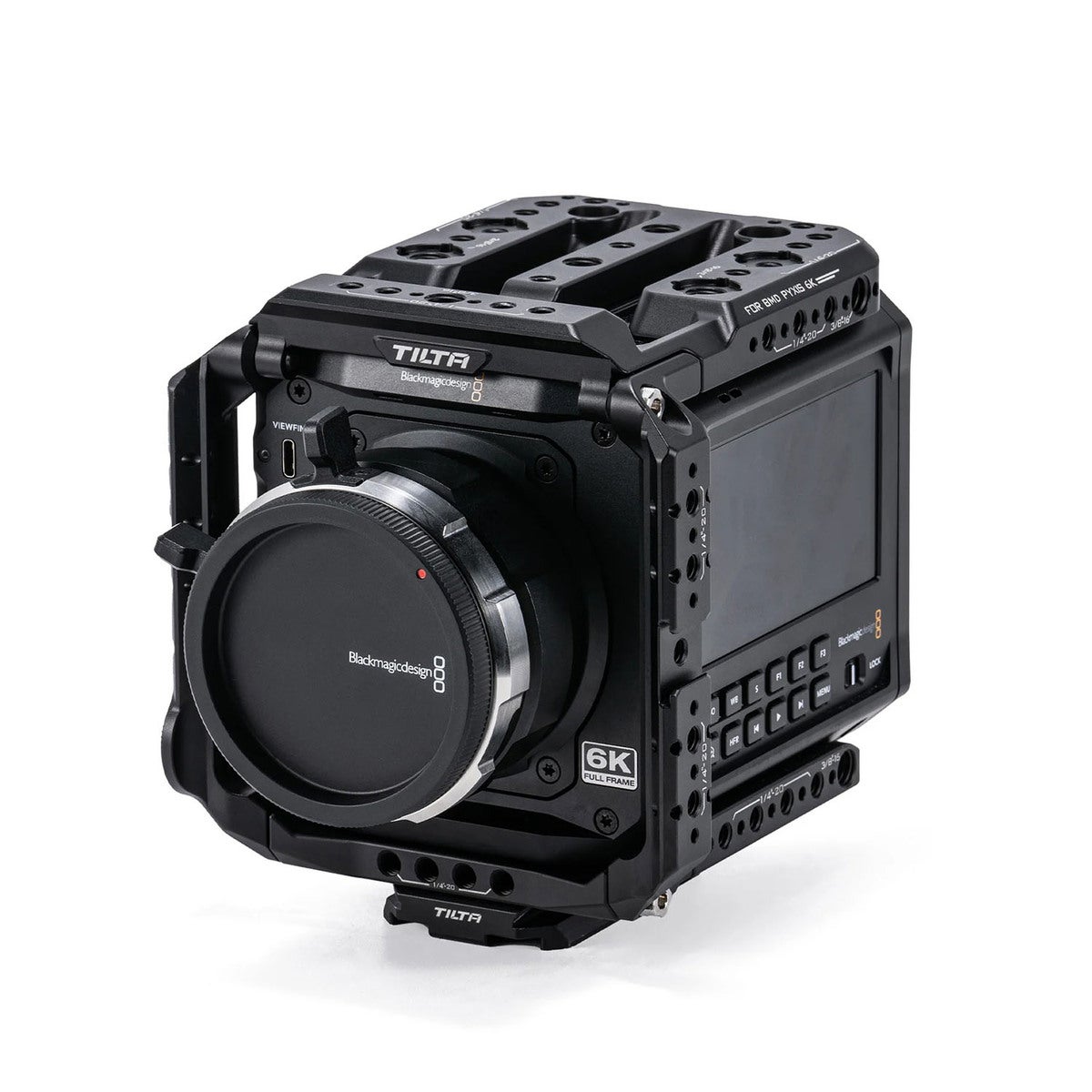

This camera cage from Tilta enhances the functionality of the Blackmagic PYXIS 6K.
- Modular design with five parts.
- Supports external SSD recording.
- Vertical lens alignment capability.
- Heat dissipation clearance.
- Compatible with various accessories.
The full camera cage for the Blackmagic PYXIS 6K offers a robust and modular design, providing protective armor for the camera body. It includes five main components: the side plate, top plate, left side arm, right side arm, and bottom plate. These parts can be used independently, allowing for flexible rigging and expansion options to suit different shooting needs.
The side plate is multifunctional, supporting external recording via an SSD mount and featuring multiple 1/4"-20 and 3/8"-16 threads for various accessories, including smartphone clamps for livestream setups. It accommodates SSDs of various sizes, specifically those 52mm-60mm wide and less than 12mm thick.
Designed with vertical lens alignment in mind, the bottom plate has threads positioned to align the baseplate with the optical center of the lens when in a vertical configuration. Both the top and bottom plates are crafted to avoid the camera's heat dissipation vents, ensuring optimal cooling performance.
The top plate is compatible with the PYXIS native top handle and includes a detachable 3/8 to 1/4 thread adapter, offering versatility in choosing different top handles. This cage is compatible with many additional accessories, enhancing the overall functionality and adaptability of the Blackmagic PYXIS 6K camera.
