Tilta's battery plate for DJI RS 4 provides expanded power options and improved balance.
- Compatible with multiple DJI gimbals.
- Extended power with different battery plates.
- Power outputs: P-Taps, Lemo and USB-C.
- Improved balance with lower center of gravity.
- Compatible with Hydra Alien and Float System.

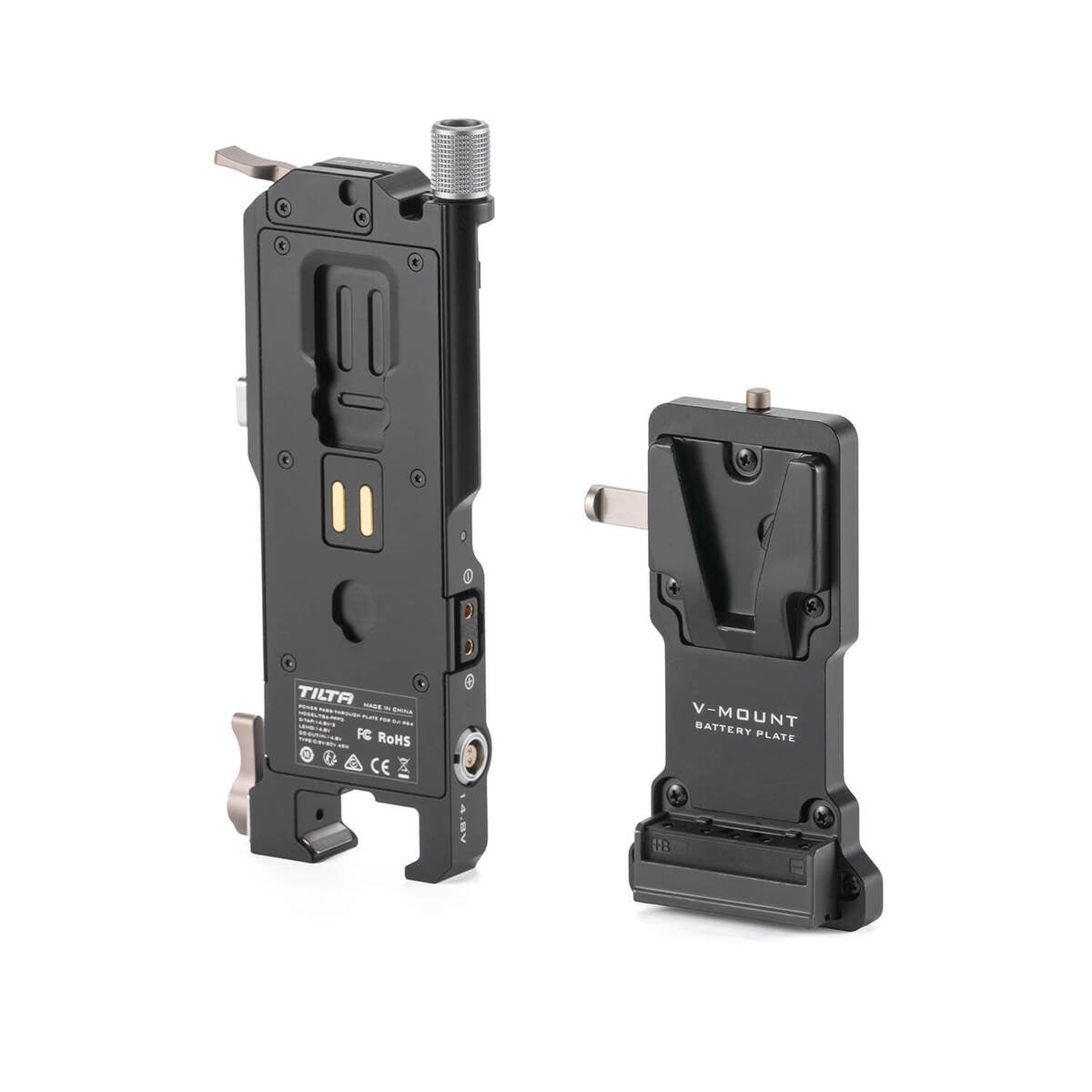

Tilta's Power Pass-through Plate for DJI RS 4 is designed to replace the original sled on DJI RS2, RS3, RS3 Pro, RS4 and RS4 Pro, providing more power options for cameras and accessories. By replacing the original Ronin plate, users can easily mount this plate and connect Gold Mount, V-Mount or Dual NP-F battery plates to place batteries under the plate.
The plate features two P-Tap outputs, a 2 Pin Lemo port and a USB-C port (45W 20V/2.25A), making it ideal for powering cameras via dummy battery cables or accessories such as wireless follow focus motors. The 2 Pin Lemo port can also be used as a power input, allowing power to be supplied from an external source using a 2 Pin Power Cable (not included).
This plate improves camera balance and leads to better gimbal performance thanks to an optimized center of gravity, especially useful when using longer lenses. The Manfrotto receiver on the top and the Cold Shoe receiver on the bottom are identical to the original, meaning that DJI accessories, such as the Manfrotto Quick Release Plate or the Raven Eye Wireless Video Transmitter, are still compatible. The plate is made of aluminum alloy, weighs 499 g and has dimensions of 9 x 6 x 3.5".
