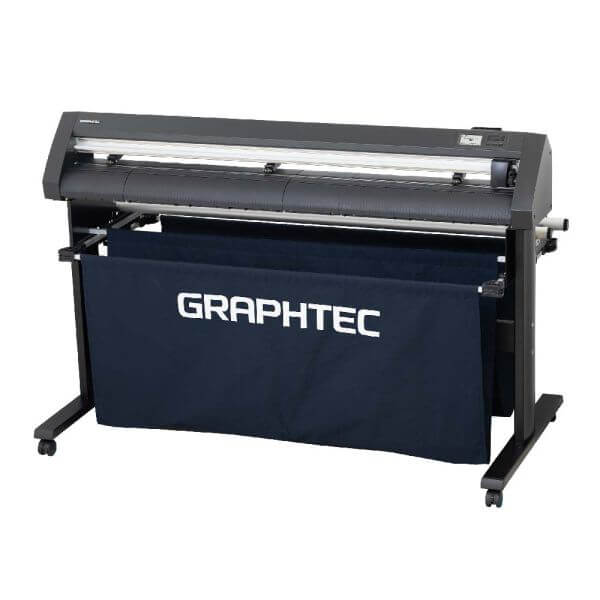

Garment Pattern Cutter CE8000-130AP
- Dual tool configuration for cutting and plotting
- Wireless function (included as Standard)
- Enhanced speed when perforation cut
- Media feeding stability (4 push rollers as standard)
- Blade / Pen wear level alarm function
High-quality and High-speed Cutter for Apparel Applications
CE8000-130AP is a high-speed, professional cutting plotter designed specifically as an output machine device for apparel CAD systems.
Dual tool configuration has been installed to improve the production efficiency, and the cutting speed of perforation cut has been faster compared to the previous model. It also features an easy-to-use menu navigation system with eight groups of preset conditions which facilitates instantaneous recall of pre-programmed job-specific plotter setups.
Dual tool configuration for cutting and plotting
It holds both a pen and a blade.
The pen is for plotting and detailing graded patterns with seams, text, notches, grain direction, etc. The blade is to make the perforated cut of the pattern outline.
The tool is automatically switched for cutting and plotting as needed, ensuring a high quality pattern and maximum productivity.
Enhanced speed when perforation cut
Perforation cutting is performed by controlling the cutting force instead of blade up/down movements, dramatically increasing throughput.
The force is controlled by the design software using a new command.
Blade / Pen wear level alarm function
Able to measure cutting distance of consumables such as blades and pens, and set conditions for tool replacement.
Data output via USB flash memory without PC
USB memory reading port enables users to output data via USB flash memory without PC or dedicated software.
*The USB memory format only supports FAT32.
Please note that NTFS and exFAT are not supported
High adaptability to the operating Environment
The design of the media feed system ensures that loaded media is acclimated to the ambient temperature and humidity before plotting or cutting. The user-selectable media pre-feed function sets two outer tracks, enhancing media handling.
Together, these two media feed elements ensure reliable cutting and plotting quality within the desired operating environment.
For more information, see the downloadable pdf file under the product media tab below.
