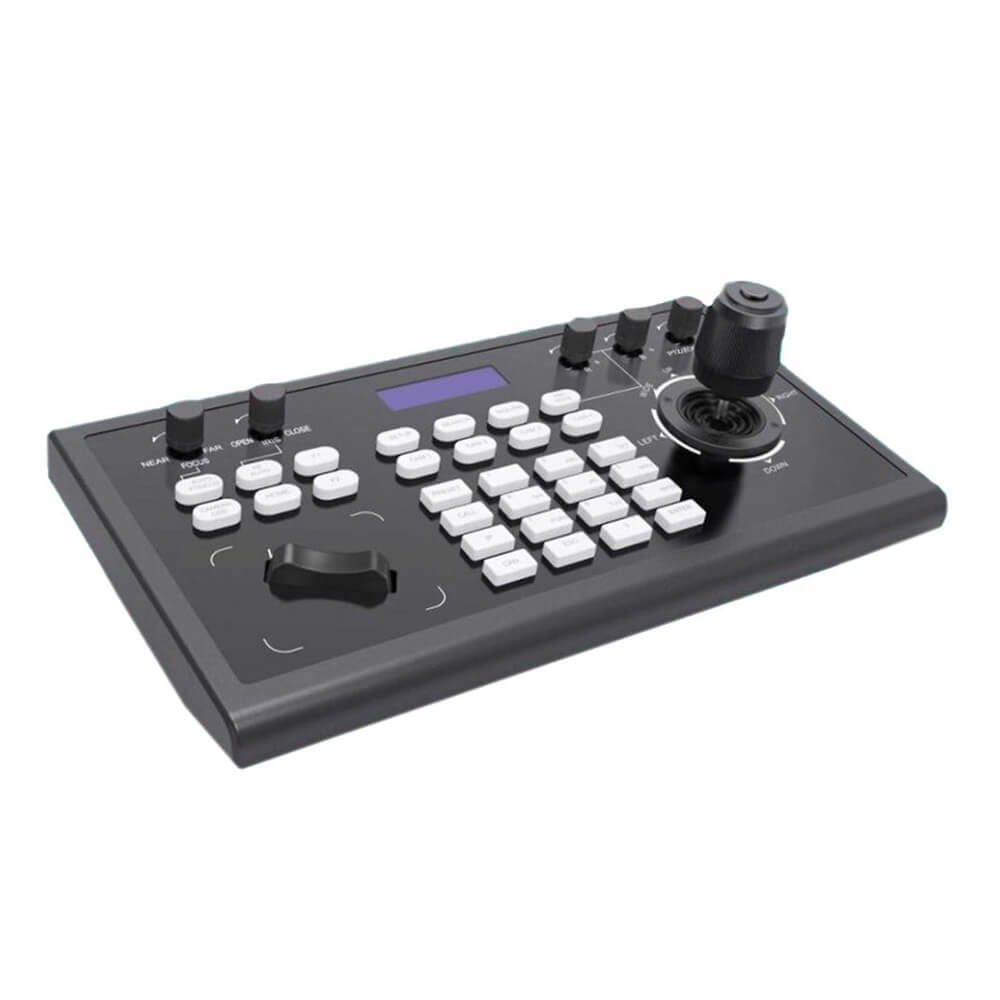

RGB Link PTZ Camera controller w/ RJ45, RS422, and RS232

Multipel control and network protocol
LCD screen on front panel with key tone
Control code modified by customers
Camera speed control via joystick
Camera parameters adjustment via keys
Multiple control connectors, up to 255 cameras
Support PoE

Supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc. RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.

Unique control code learning function allows customers to modify the control code instructions. Any device on the RS485 bus can be individually configured with different protocols and baud rates.

The Ethernet port supports POE, power supply and control can be completed with a single network cable, making wiring easier and more convenient. All camera parameters can be set through the button operation.

CD display, keypad sound prompt, real-time display decoder and matrix working status. 4D joystick allows variable speed control to cameras. Maximum communication distance: 1200M(0.5MM Twisted-Pair Cable)

Technical Data
Parameter / Model: KBD2000
Port
Network: RJ45.
Serial Port: RS422, RS232
Protocol
Network : ONVIF, VISCA
Serial Port: VISCA, PELCO‐D, PELCO‐P
Communication: BPS 2400bps, 4800bps, 9600bps, 19200bps, 38400, 115200
Interface: 5PIN, RS232, RJ45
Joystick: 4D（up, down, left, right, zoom, lock）
Display: LCD Blue Screen
prompt tone: ON/OFF
Power Supply: DC12V±10%
Power Consumption: 6W MAX
Working Temperature: ‐10℃～50℃
Storage Temperature: ‐20℃～70℃
Environment humidity: ≦90%RH (nodew)
Dimensions(mm): 320mm（L）X179.3mm（W）X109.9mm(H)
Upgrade: WEB Upgrading
