CM-S73H 7-inch 3000nit Super Bright LCD Monitor

• 7” non-glaring LCD, 1920×1200 resolution
• 3000nit super high bright
• HDR capable: PQ / HLG / S-log3
• 2K/3G/HD/SD-SDI input & loop output
• HDMI 2.0 (4K60p) input & loop output
• 16-ch embedded audio meters with alert
• Select any 2 audio channels to output
• 9 steps quick zoom-in and mapping
• Focus assist with precision adjustment
• Build-in multi-camera logs to Rec.709
• User 3DLUT cube file import by USB
• On-screen TALLY display and GPI
• Zebra stripes, False color, R/G/B/Mono
• H/V delay, AFD, Timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• V/Gold mount or various DV plates option
• USB firmware upgrade

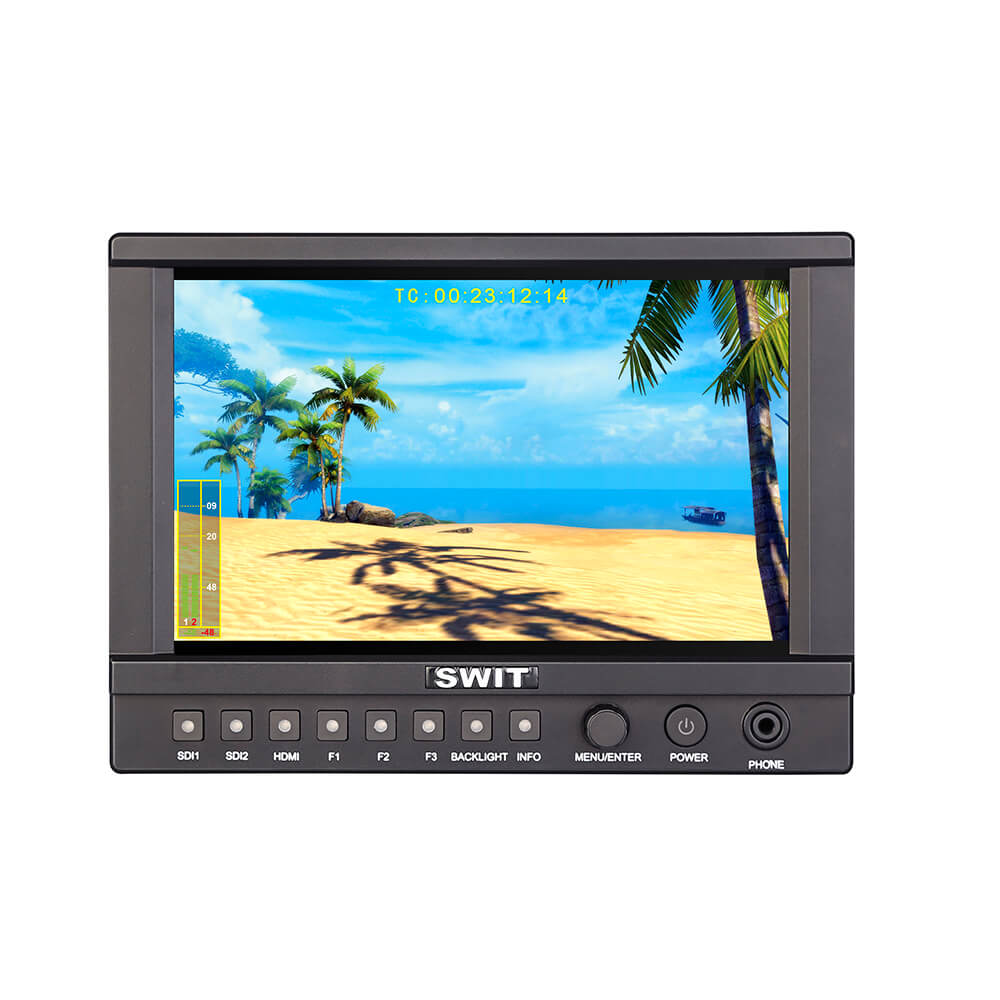

The CM-S73H adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, viewable under sunlight, and support PQ, HLG, S-log3 HDR display. The native resolution is Full HD 1920×1200, contrast 1200:1.

CM-S73H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1 (loop SDI IN1 only)
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output

CM-S73H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

For more information, see the downloadable pdf under the product media tab below.
