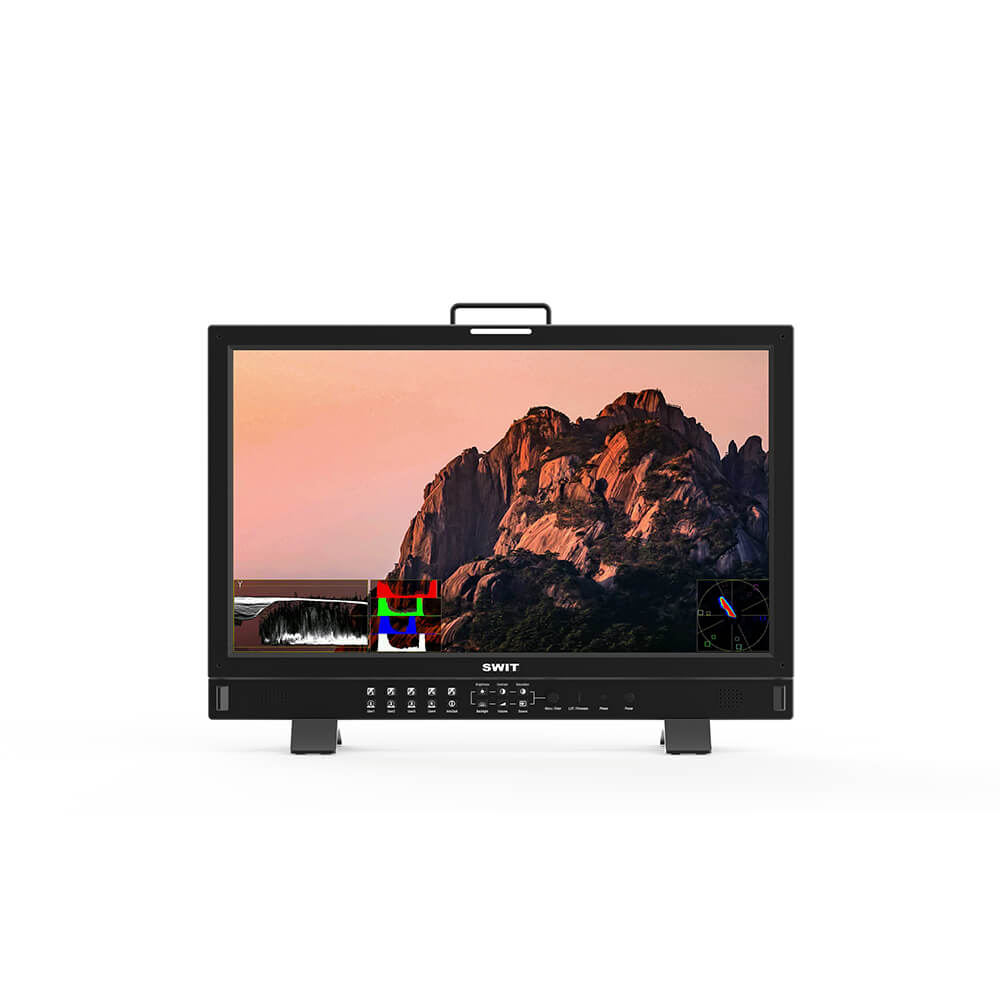

BM-H245 23.8-inch 4K Input Ready Production Monitor

• 23.8-inch 1920×1080 QLED Panel
• 100% DCI-P3 wide color gamut coverage
• VICO 1.97 A-class Eye Protecting LCD
• 12G-SDI, 4x3G-SDI, HDMI2.0 4K input
• 4-ch SDI/HDMI mixed multiview
• 2-ch SDI/HDMI PBP or PIP view
• Multi Color Gamut & HDR/SDR Viewing
• Payload ID auto setting
• 18-bit internal color processing
• Audio/Video Zero latency for lip-sync
• 3DLUT Auto Self-calibration without PC
• Built-in Multi camera Delog LUTs
• User 3DLUTs upload via USB
• Waveform / Vector / Histogram / Eye pattern
• Focus assist / False color / Zebra
• 16-ch audio meters / Lissajous pattern
• 5.1 & 7.1 surround sound phase pattern
• IP webserver remote control
• TSL UMD and text TALLY display
• USB firmware upgrade

BM-H245 adopts a 23.8-inch1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, 1000:1 contrast, H/V 178° viewing angle for broadcast and film productions.

BM-H245 provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including:
- 12GSDI Single link 4K;
- 4x3GSDI Quadlink 4K, (SQD and 2SI)
- HDMI 2.0 (4K60P)
Supports pixel-to-pixel zoom-in the 4K signal to FHD panel.

Supports Single link 4K input including 12GSDI, HDMI2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.

For more information, see the downloadable pdf under the product media tab below.
