TILTA
Camera Cage for BMCC 6K Advanced Kit Black
Artikelnummer: 60006249

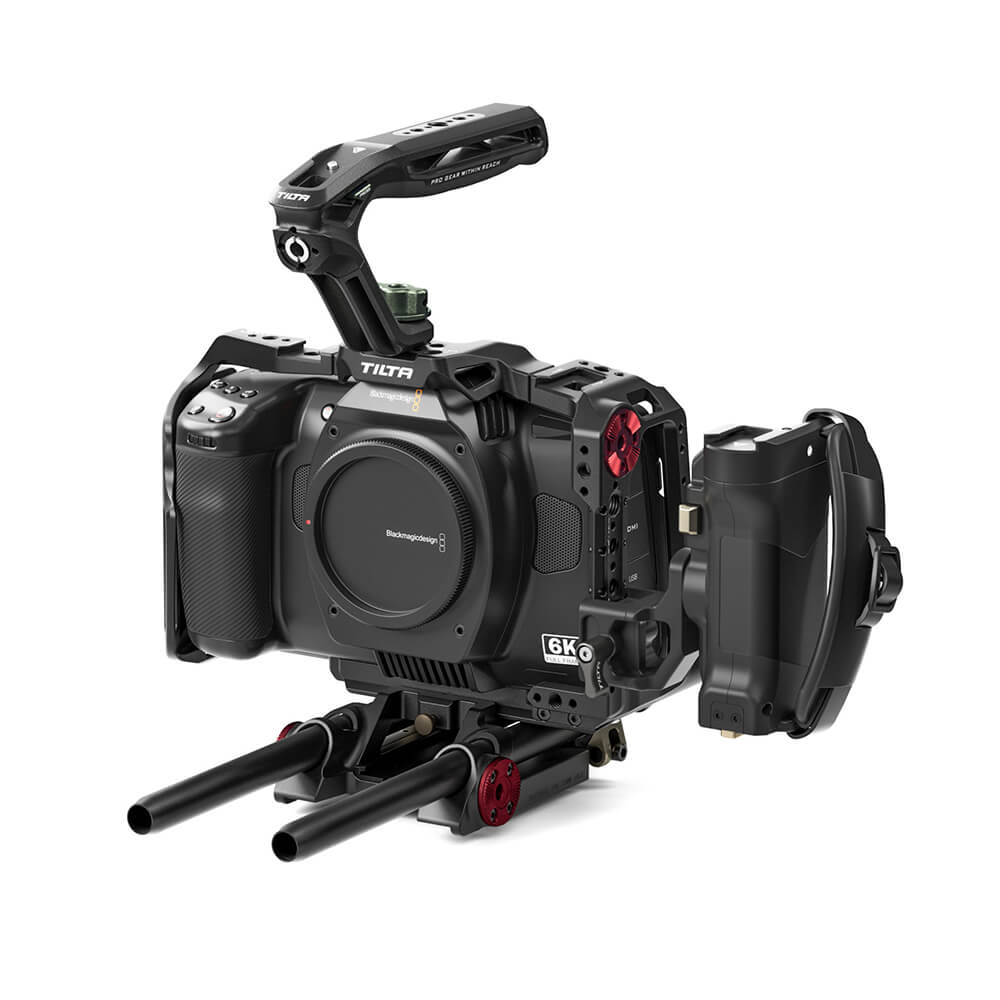

TILTA Camera Cage for BMCC 6K Advanced Kit Black
- Mount Accessories via NATO Rail, Arri Compatible Rosette, Cold Shoe Receivers, 1/4"-20 Threads with Locating Pins
- Various Configurations via Detachable Design Allows for Half Cage & L-Bracket Setups
- Xeno Top Handle Provides Additional Mounting Points & Increased Flexibility When Operating or Handling
- Battery Grip Compatible via an Adjustable Bottom Plate Expansion Bracket and Dual 15mm Rod Holder
- Run Stop Handle Powers Accessories and Controls Run Stop on the Camera via Run Stop Cable
The foundation of this Camera Cage for the BMCC 6K (Full Frame) provides protective armor for the camera body and allows users to secure different accessories to improve the camera’s functionality.
This updated version features a top plate that perfectly aligns with the 1/4″-20 thread on the top of the Full Frame camera body, while featuring a two screw connection on the bottom, which creates an incredibly secure three points of contact.
The Full Cage offers several 1/4”-20 threads with locating pins, cold shoe receivers, an Arri compatible rosette and a NATO Rail while being impressively modular, as the right side arm module can be removed to become a Half Cage or L-Bracket.
The Bottom Plate provides several 1/4″-20 mounting points for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the DJI RS3 Pro.
When using the Half Cage, the bottom plate can be extended to support the Black Magic Design Battery Grip and includes a 15mm Rod Holder to use rod based accessories in the correct LWS alignment with the Battery Grip.
When not using the Battery Grip, the included 15m LWS Baseplate Type VI can be mounted to the cage which adds 15mm rod support and allows users to mount rod based accessories such as matte boxes and follow focus systems.
The bottom of this baseplate connects to our Tilta Dovetails and supports various quick release plates via 1/4″-20 and 3/8″-16 threads.
The Advanced Kit includes an Advanced Power Handle (Battery Not Included) which mounts to the left side of the cage via NATO Rail and features a 12V Micro DC Port (3.5/1.35mm) and an 8V USB-C port for powering the camera or other accessories.
The handle is also able to control Run Stop on the BMCC 6K via an included Run Stop Cable while the rotation of the handle provides flexible operation when shooting handheld.
Included in this Kit is the Xeno Top Handle, which mounts to the cage via a 1/4″-20 screw with locating pins and features a silicone padded grip, which makes handling more comfortable while featuring numerous mounting points for additional accessories such as a cold shoe receiver, 1/4″-20 and 3/8″-16 threads.
The included 90 Degree HDMI Adapter attaches to the cage near the HDMI port which offers a secure connection that limits wear on the port.
The kit also includes an SSD Drive Holder that mounts via a 1/4″-20 screw with a locating pin, and allows users to clamp down on a Samsung T5 SSD drive for external recording.
The BMD EVF does NOT fully clear the Top Plate of the cage. Please exercise caution to avoid damage to the EVF.
Packing List
1:Full Camera Cage for BMCC 6K – Black(TA-T64-FCC-B)*1
2:Tilta Xeno Top Handle (1/4″-20 with Locating Pins) – Black(TA-XTH1-B)*1
3:Tilta SSD Drive Holder for T5 – Black(TA-SSDH-T5-B)*1
4:15mm Rod Holder for BMPCC 6K Pro – Black(TA-T11-RH-B)*1
5:HDMI 90-Degree Adapter for BMPCC 4K/6K( TA-T01-HDA-90)*1
6:Tiltaing 15mm LWS Baseplate Type VI – Black(TA-BSP6-15-B)*1
7:Advanced Side Handle Run/Stop Cable for USB-C Port(RS-TA3-USBC)*1
8:Tiltaing Left Side Advanced Power Handle with Run/Stop (F570 Battery) – Black(TA-LRH-57-B)*1
9:Tiltaing Advanced Left Side Handle Attachment Type VI – Black(TA-AHA6-L-B)*1
10:Aluminum Rod 15*200mm Black(R15-200-B)*2Pcs
EAN kode | 6937134607963 |
Leverandør Nr | TA-T64-A-B |
Forpakningsvolume (l) | 12.74 |
Bruttovægt (g) | 2100,00 |
Nettovægt (g) | 1700,00 |
Højde (emballage) | 140,00 |
Bredde (emballage) | 350,00 |
Oprindelsesland | CN |
Forpakningsstørrelse | 1 |
Forpaknings længde/dybde (mm) | 260,00 |
